DUROFIX Pro-Assembly Series

DUROFIX transducerized tools measure torque at the output with a built-in transducer, giving real-time results for safety-critical joints. An OLED display shows achieved torque, angle and batch count, and LED and buzzer signals confirm OK or NG status at shut-off. Two-way wireless communication links the tool to a PLC or PC for data collection.

The RV2052 and RV2054 pistols cover 0.4–24 Nm, and the RV2053 inline nutrunner reaches 120 Nm on a 1/2 in. square drive. The RV2053 and RV2054 also use the Electronic Pulse System to reduce reaction force. All run on a 20V platform.

• Torque 0.4–120 Nm
• Cmk ≥ 1.67 at ±10%
• Wireless link to PLC or PC
• 20V brushless motor

Models: RV2052, RV2053, RV2054

DUROFIX clutch tools use a mechanical clutch that disengages the drive at the preset torque, combined with automatic motor shut-off and LED and buzzer confirmation of each joint. Both families include two-way wireless communication for connection to a PLC or PC.

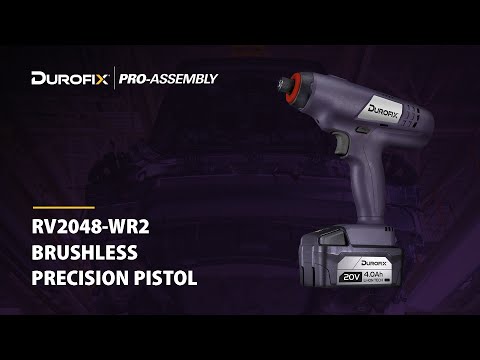

The RV2048 pistol covers 0.5–12 Nm in three ranges on a 1/4 in. hex drive, with color rings to identify each range. The RV2047 90° angle nutrunner reaches 3–90 Nm in tight spaces on 3/8 in. or 1/2 in. square drives. Both are rated Cmk ≥ 1.67 at ±10%, and the catalog lists the RV2048 as ISO 5393 certified.

• Torque 0.5–90 Nm
• Cmk ≥ 1.67 at ±10%
• 90° angle head (RV2047)
• 20V brushless motor

Models: RV2048, RV2047

DUROFIX pulse tools deliver torque in pulses rather than one continuous drive, which lowers the reaction force the operator has to resist. The RZ2013 oil pulse pistol uses a hydraulic pulse unit for 12–50 Nm at up to 6,000 rpm, with automatic shut-off, OK/NG signaling and wireless connectivity.

For heavier joints, the RI20130 mechanical pulse tool offers 40 torque stages from 80 to 400 Nm on a 1/2 in. square drive, with seven flush levels to suit soft through hard joints. All models run on 20V batteries and brushless motors.

• Torque 12–400 Nm
• Oil and mechanical pulse units
• Programmable speed up to 6,000 rpm
• 20V brushless platform

Models: RZ2013, RI20130

DUROFIX impact wrenches pair a hammer-and-anvil mechanism with patented Electronic Torque Control or auto shut-off, which stops the tool when the selected torque stage is reached. On the RI20126, a display shows the torque stage and error messages, and LED and buzzer signals confirm joint status.

The 20V RI20126 offers 50 preset stages on a 1/2 in. square drive for M10–M16 work. The 20V RI2036 jumbo covers up to 700 Nm controlled torque with 1,100 Nm reverse. The 60V RI60164A4-6 moves to a 3/4 in. drive with 46 stages from 100 to 1,000 Nm and 2,175 Nm reverse torque.

• Controlled torque 25–1,000 Nm
• Reverse torque up to 2,175 Nm
• 1/2 in. and 3/4 in. square drives
• 20V and 60V platforms

Models: RI20126, RI2036, RI60164A4-6

The DUROFIX RV20108 is a 20V brushless blind rivet tool for aluminum, steel and stainless steel rivets from 3.2 to 6.4 mm, with up to 20,000 N of setting force. It completes a full setting cycle with one trigger press and auto-reverse, and an integrated mandrel collector keeps spent mandrels off the floor.

The Pro-Assembly catalog also lists the RV20104 riveting tool (15,000 N) and the RV20103 and RV20105 rivet nut tools for threaded inserts, which use electronic torque and speed control.

• Blind rivets 3.2–6.4 mm
• Max. setting force 20,000 N
• Stainless rivets up to 4.8 mm
• One-press cycle with auto-reverse

Models: RV20108, RV20104, RV20103, RV20105
